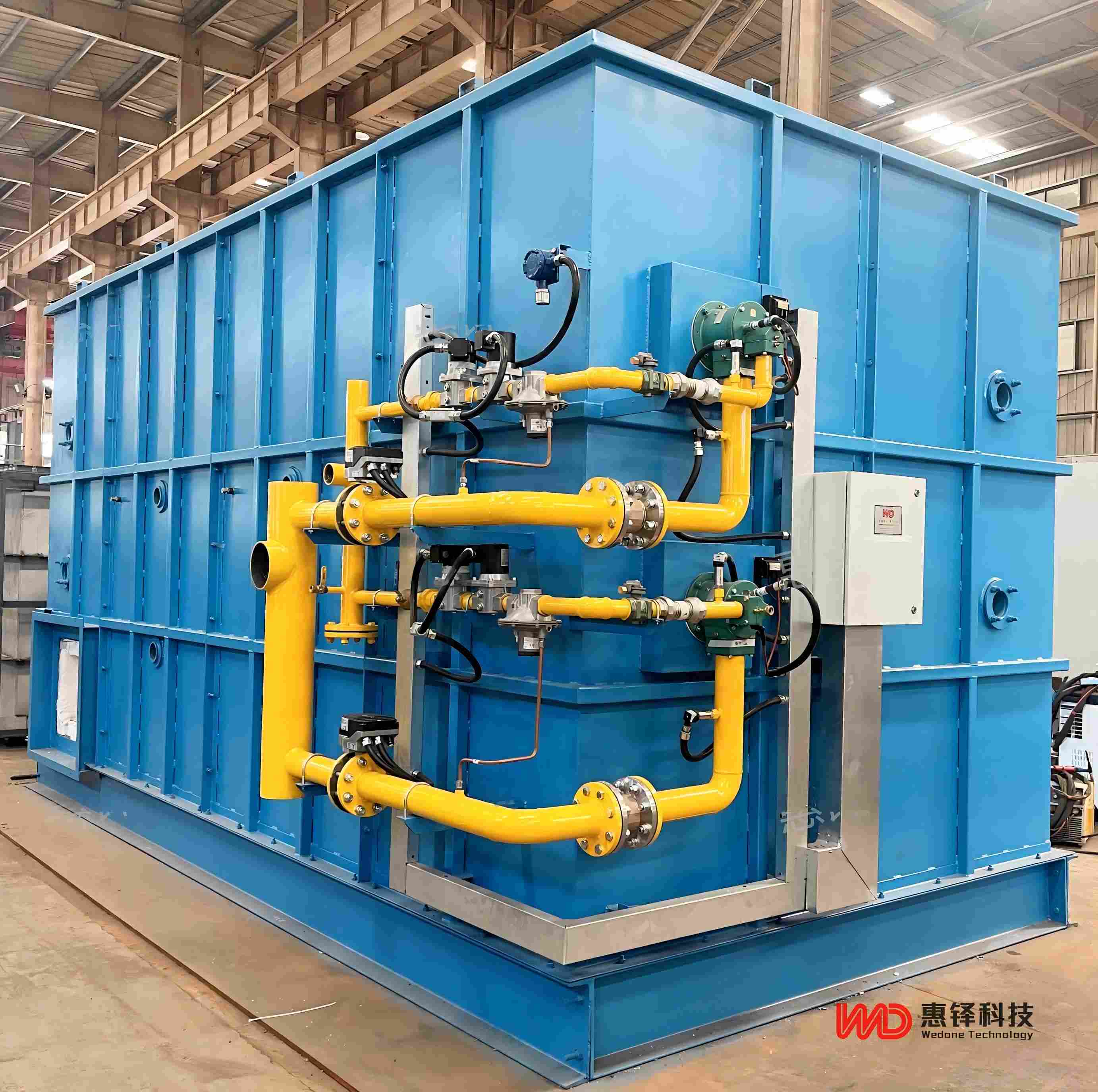

Professional thermal transfer balance calculation and computer aided flow field design to optimize furnace combustion chamber and burner layout design.

Custom made ECLIPSE ultra low Nox emission FN-SER burner for Hot- dip Galvanizing application (Nox ≤ 50mg/m3@ 3% O2) .

High Velocity Pulse-fired Combustion System ( flame outlet speed : 165m / s ) enhances convective heat transferring. Combustion configure comply with US NFPA86C and Europe EN746-II Safety Codes .

Kettle is equipped with insulated heat shields to

eliminate the danger of hot spots.

The furnace is lined with nanomaterials insulation and a ceramic fiber wall, making sure few heat loss from the outer furnace walls. The

temperature rising of the outer wall surface is no more than 25℃ , within the rated production capacity of the furnace.

High thermal efficiency (65%);Gas consumption saving up to 30% compared to conventional furnace.

State-of-the-art modular design and the factory pre-construction make easy & fast on-site installation.

Siemens PLC based intelligent HDG control and management system featuring ZINC Auto Melt, gas leakage and ZINC leakage warning devices, self-troubleshooting, remote diagnosis and supervision function, providing 7X24 around clock Mobile APP technical support.
